Recessed COB architectural lighting
Recessed and semi-recessed ceiling luminaires built around high-output COB modules from CREE, CITIZEN, BRIDGELUX and LUMILEDS. Fixed, adjustable and gimbal bodies, interchangeable lenses and beam angles from 12° to 60° let one family of fittings cover general, accent and wall-wash duties across retail, hospitality and residential interiors.

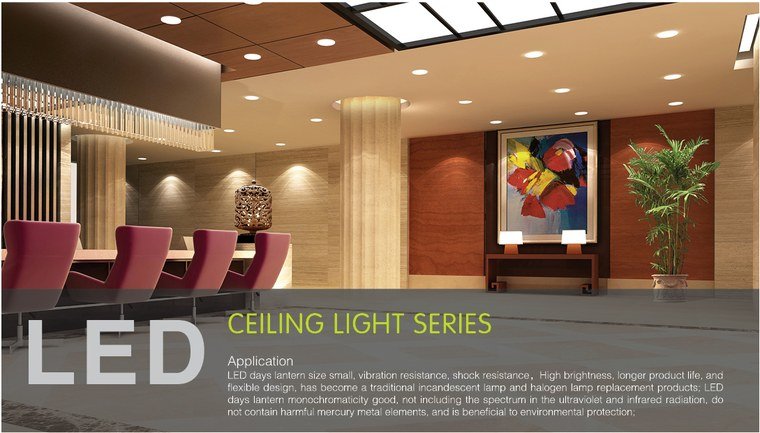

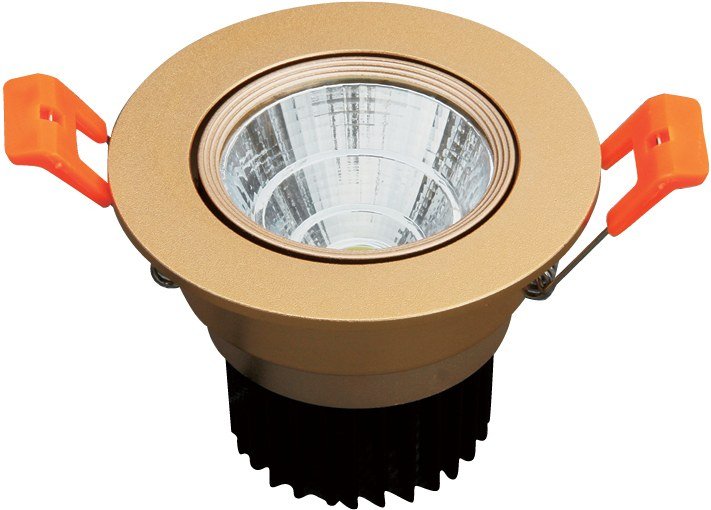

Round Recessed Ceiling Light
Entry-level round recessed ceiling light in a pressed aluminium body, supplied as a complete 9W fitting with integral driver.
Round Recessed Ceiling Light
12W round recessed ceiling light with a deeper reflector cup for reduced glare in corridors and lobbies.
QUEST Recessed COB Downlight
The QUEST family covers nine round and rectangular recessed bodies on a single COB platform — fixed, adjustable and twin-head — with 25°, 40° and 60° beams and single or double 15W engines.
IDO-1101
Ø80 × H91mm — cut-out Ø70mm
IDO-1102
Ø91 × H92mm — cut-out Ø80mm
IDO-1103
Ø100 × H91mm — cut-out Ø90mm
IDO-1104
Ø80 × H99mm — cut-out Ø70mm
IDO-1105
Ø90 × H101mm — cut-out Ø80mm
IDO-1106
Ø90 × H104mm — cut-out Ø80mm
IDO-1107
110 × 110 × H119mm — cut-out Ø103mm
IDO-1108
210 × 110 × H119mm — cut-out 203 × 103mm
IDO-1109
210 × 110 × H119mm — cut-out 200 × 100mm
| model | size | note |
|---|---|---|
| IDO-1101 | Ø80 × H91mm — cut-out Ø70mm | Fixed |
| IDO-1102 | Ø91 × H92mm — cut-out Ø80mm | Adjustable 30° |
| IDO-1103 | Ø100 × H91mm — cut-out Ø90mm | Adjustable 30°, rotation 350° |
| IDO-1104 | Ø80 × H99mm — cut-out Ø70mm | Fixed, deep baffle |
| IDO-1105 | Ø90 × H101mm — cut-out Ø80mm | Adjustable 30° |
| IDO-1106 | Ø90 × H104mm — cut-out Ø80mm | Adjustable 30° |
| IDO-1107 | 110 × 110 × H119mm — cut-out Ø103mm | Square, adjustable 15°, rotation 350° |
| IDO-1108 | 210 × 110 × H119mm — cut-out 203 × 103mm | Twin head, adjustable 15°, rotation 350° |
| IDO-1109 | 210 × 110 × H119mm — cut-out 200 × 100mm | Twin head, adjustable 15°, rotation 350° |

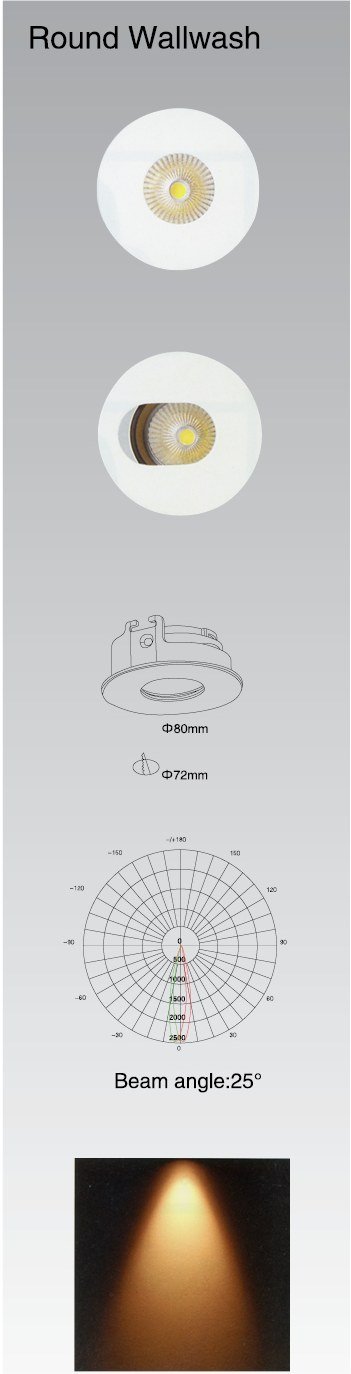

FLEX Recessed COB Downlight
A compact Ø80mm recessed platform available as a fixed (IDO-1401) or fully adjustable (IDO-1501) body, offered with 9W and 15W engines, four beam angles and seven trim finishes.
IDO-1401

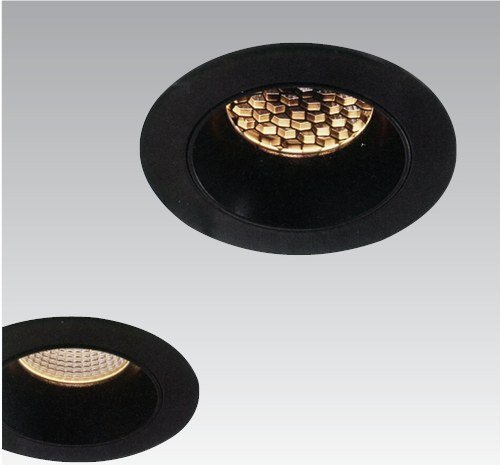

IDO-1501
| model | note |
|---|---|
| IDO-1401 | Fixed downlight body |
| IDO-1501 | Adjustable gimbal downlight body |
INVIS Linear Recessed Spotlight
Trimless linear recessed spotlights with deep-set OSRAM cells for near-invisible ceilings. Nine bodies from a single 3W cell up to a 24-cell 60W double row, in fixed and adjustable versions.
IDO-1701
1 LED — 3W
IDO-1702
3 LED — 8W
IDO-1703
3 LED — 8W
IDO-1704
6 LED — 15W
IDO-1705
6 LED — 15W
IDO-1706
12 LED — 30W
IDO-1707
12 LED — 30W
IDO-1708
12 LED — 30W
IDO-1709
24 LED — 60W
| model | power | size | note |
|---|---|---|---|
| IDO-1701 | 1 LED — 3W | 47 × 44.5 × H43mm — cut-out 38 × 36mm | Fixed |
| IDO-1702 | 3 LED — 8W | 98 × 44.5 × H43.5mm — cut-out 87 × 36mm | Fixed |
| IDO-1703 | 3 LED — 8W | 120 × 62 × H45mm — cut-out 103 × 48mm | Adjustable 30° |
| IDO-1704 | 6 LED — 15W | 178 × 49.5 × H43.5mm — cut-out 167 × 37mm | Fixed |
| IDO-1705 | 6 LED — 15W | 199 × 62.5 × H45mm — cut-out 183 × 48mm | Adjustable 30° |
| IDO-1706 | 12 LED — 30W | 199 × 125 × H45mm — cut-out 183 × 102mm | Double row, adjustable 30° + 30° |
| IDO-1707 | 12 LED — 30W | 337 × 48 × H53mm — cut-out 325 × 36mm | Fixed |
| IDO-1708 | 12 LED — 30W | 354 × 62 × H54mm — cut-out 342 × 48mm | Adjustable 20° |
| IDO-1709 | 24 LED — 60W | 354 × 120 × H56mm — cut-out 342 × 108mm | Double row, adjustable 30° + 30° |
