Anti-glare downlights and surface cylinders

LED Down Light Series

7 product families•24 model references•Catalogue pages 18–24

Commercial downlighting from deep anti-glare recessed modules to surface-mounted cylinders. The AMPHI range holds UGR < 19 at 15–35W for offices and galleries, while the PURE cylinders bring the same COB optics to exposed ceilings.

Features

AMPHI deep anti-glare optics, UGR < 19
IP44 rated front face
Constant-current 350mA / 500mA / 700mA drivers
100–240V universal input
Trim finishes in white, silver, chrome, gold and black

AMPHI Series

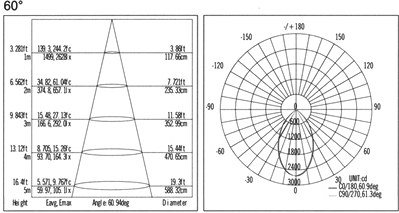

AMPHI Anti-Glare Downlight

Deep-recessed anti-glare downlights at 15W, 21W and 35W. A long optical chamber and matt inner cone hold UGR below 19 while keeping a wide 60° distribution.

Beam angle: 60°
Colour temperature: 3000K / 4000K / 5000K
Colour rendering: Ra ≥ 80
Voltage: 100–240V
Ingress protection: IP44
Glare: UGR < 19

WhiteSilverChromeGoldBlack

Models in this range

model	power	Output	size	note
IDO-2001	COB 12.8W — max 15W	874 / 1024 / 1174 lm	Ø120 × 88mm — cut-out Ø100mm	350mA
IDO-2002	COB 19.5W — max 21W	1535 / 1685 / 1835 lm	Ø150 × 125mm — cut-out Ø130mm	500mA
IDO-2003	COB 31W — max 35W	2785 / 2935 / 3085 lm	Ø180 × 118mm — cut-out Ø160mm	700mA

Full specification

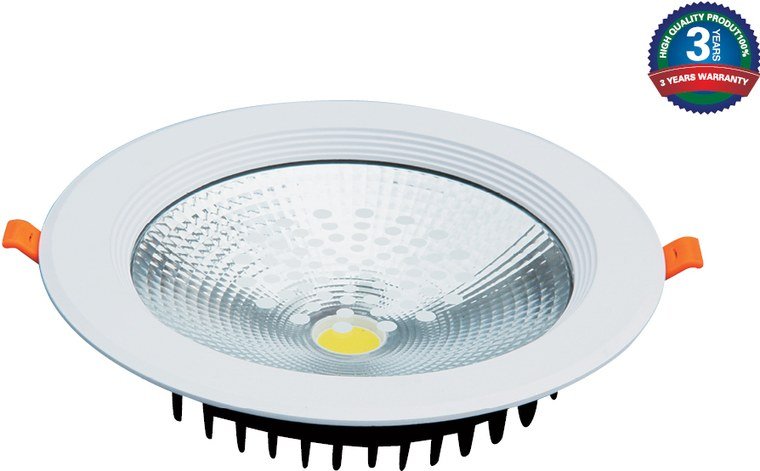

IDO-2101

COB Recessed Downlight

Round recessed COB downlight in three sizes with a three-year warranty, aimed at retail and hotel general lighting.

Power: 20W / 30W / 40W
Material: Aluminium
Shape: Round
Light flux: up to 4000 lm
Input: AC85–265V
Warranty: 3 years

Models in this range

model	power	size
IDO-2101-1	30W	cut-out Ø140mm
IDO-2101-2	40W	cut-out Ø210mm

Full specification

IDO-2201

COB Reflector Downlight

White-trim COB downlight with a faceted reflector, spanning 15W to 60W on a single visual language.

Voltage: AC85–265V
Light source: COB
Ingress protection: IP20
Certification: CE / CB / RoHS

Models in this range

model	power	voltage	size
IDO-2201-1	15W	AC85–265V	Ø90mm
IDO-2201-2	30W	AC85–265V	Ø140mm
IDO-2201-3	60W	AC85–265V	Ø210mm

Full specification

IDO-2202

Diffused COB Downlight

Soft-diffused variant of the 2200 platform with a frosted inner bowl for low-glare comfort lighting.

Voltage: AC85–265V
Light source: COB
Ingress protection: IP20

Models in this range

model	power	voltage	size
IDO-2202-1	10W	AC85–265V	Ø110mm
IDO-2202-2	16W	AC85–265V	Ø160mm
IDO-2202-3	32W	AC85–265V	Ø210mm

Full specification

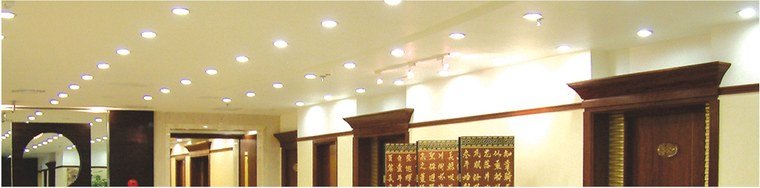

IDO-2301

Slim Recessed Downlight

Five-step slim downlight range from 10W to 40W sharing one trim profile.

Voltage: AC85–265V
Ingress protection: IP20

Models in this range

model	power	size
IDO-2301-1	10W	Ø75mm
IDO-2301-2	15W	Ø90mm
IDO-2301-3	20W	Ø115mm
IDO-2301-4	25W	Ø140mm
IDO-2301-5	40W	Ø210mm

Full specification

IDO-2302

Slim Recessed Downlight

Compact four-step slim downlight for residential and hospitality ceilings.

Voltage: AC85–265V
Ingress protection: IP20

Models in this range

model	power	size
IDO-2302-1	7W	Ø75mm
IDO-2302-2	10W	Ø90mm
IDO-2302-3	15W	Ø140mm
IDO-2302-4	30W	Ø210mm

Full specification

PURE Series

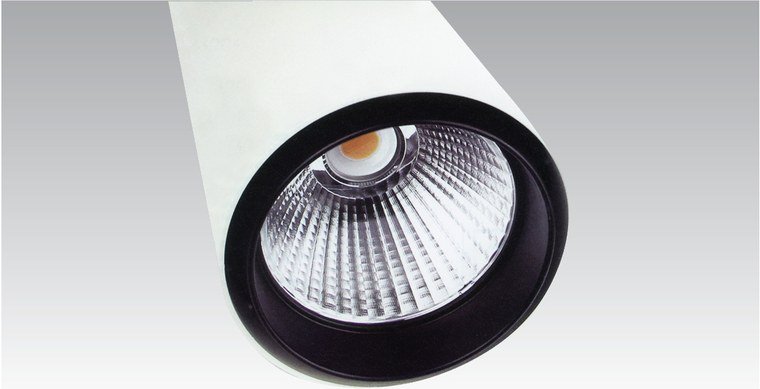

PURE Surface Cylinder

Surface-mounted COB cylinders in three diameters with narrow-to-medium beams for accenting art, joinery and merchandise without a recessed ceiling void.

Colour temperature: 3000K / 4000K / 5000K
Colour rendering: Ra ≥ 80
Mounting: Surface / ceiling

Models in this range

model	power	beam	Output	size
IDO-2401	45W (COB 41W)	12° / 24° / 40°	3430 / 3480 / 3690 lm	Ø110 × 188mm
IDO-2402	30W (COB 28W)	15° / 25° / 40°	1950 / 2040 / 2180 lm	Ø90 × 188mm
IDO-2402-B	30W (COB 28W)	10° / 24° / 38°	2250 / 2400 / 2550 lm	Ø96 × 160mm
IDO-2403	21W (COB 18.2W)	10° / 24° / 38°	1575 / 1680 / 1785 lm	Ø74 × 138mm

Full specification
