Adjustable COB heads for retail and gallery track

LED Track Light Series

6 product families8 model referencesCatalogue pages 31–32

Track-mounted COB spotlights for retail, showroom and gallery work. Narrow 15° to 30° beams, adjustable heads and an aluminium-plus-glass construction that keeps junction temperatures low on continuous duty.

Application

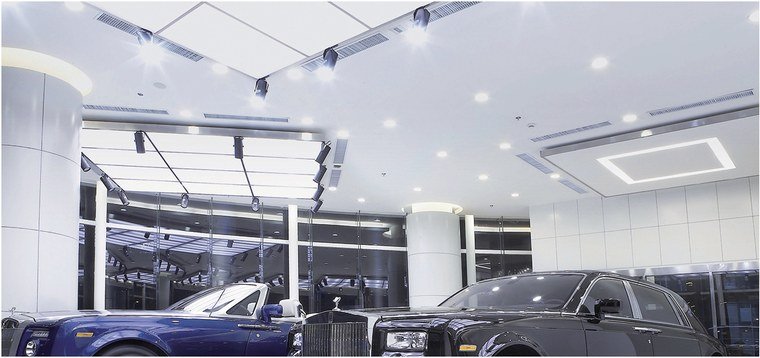

Showrooms, museums and art galleries for local lighting. Also widely used in shopping malls and bar cabinets — jewellery stores and fashion clothing shops — to make up for a lack of local luminance.

COB Track Spotlight

IDO-3101

COB Track Spotlight

Rectangular COB track head at 20W and 30W with a 15°–30° beam choice.

Power
20W / 30W
Colour temperature
6500K
Beam angle
15° / 24° / 30°
Efficacy
90–100 lm/W
Voltage
AC85–265V
Colour rendering
Ra > 80
Service life
50,000 h
Size
147 × 195 × 100mm

Models in this range

modelpowersize
IDO-3101-120W147 × 195 × 100mm
IDO-3101-220W147 × 195 × 100mm
IDO-3101-330WØ100 × 100mm
Full specification
No image

IDO-3102

Compact COB Track Head

Compact 10W COB track head for shelf and display duties.

Power
10W (range 15–30W)
Colour temperature
6000K
Voltage
AC85–265V
Size
120 × 150 × 70mm
Full specification
Cylinder Track Spotlight

IDO-3201

Cylinder Track Spotlight

Cylindrical track spotlight in aluminium and glass, 10W with 800lm output.

Power
10W
Size
Ø100 × H230mm
Light flux
800 lm
Material
Aluminium + glass
Colour temperature
3000–6000K
Full specification
No image

IDO-3202

Cylinder Track Spotlight

10W cylinder head in 6000K.

Power
10W
Colour temperature
6000K
Material
Aluminium + glass
Full specification
No image

IDO-3203

Cylinder Track Spotlight

20W cylinder head for higher ceilings.

Power
20W
Colour temperature
6000K
Material
Aluminium + glass
Full specification
No image

IDO-3204

Cylinder Track Spotlight

30W cylinder head, the largest in the range.

Power
30W
Colour temperature
6000K
Material
Aluminium + glass
Full specification
